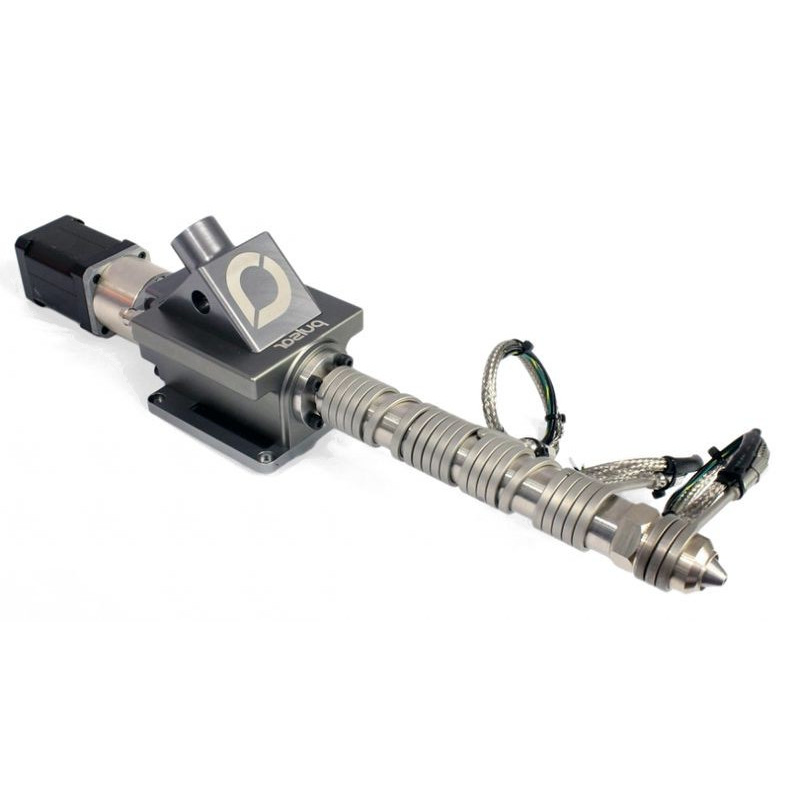

Pulsar™ Large-Scale Pellet Extruder
The triple heat zone design ensures the polymer is at a constant temperature. The top section receives cold pellets and generates more heat to melt them. Then, the middle zone stabilizes the polymer at a precise temperature. Finally, the nozzle heater ensures an even flow.
Key Features:
- Maximum screw operating speed: 60 RPM
- Max temperature: 500°C
- Travel speed: max 200 mm/s
- Screw diameter: 19.3mm
- Available nozzle sizes: 1, 1.50, 2, 3, 4, 5mm
Guaranteed Lower Price
✔ Brand New
✔ Installation Services
✔ User Training
✔ Warranty Services
✔ Online Support
Product Overview
Pulsar™ Large-Scale Pellet Extruder
The non-planar heatcore version offers more clearance around the nozzle, making it easier to print nonplanar toolpaths. The non-planar can also be mounted on a robotic arm to increase printing possibilities. The Pulsar is ready for any environmental conditions. Due to the powerful heating zones, the water-cooling loop ensures the system is at a constant temperature
Ultra High Flow
The Pulsar can output up to 500 mm³/s (2.5kg/h). It is our highest output flow solution and one of the fastest portable pellet extruder on the market. The all-metal frame is made from aluminum alloy and is designed to withstand high stresses in tough conditions.
Uniform Heating
The spiral heaters are wrapping the whole heated cylinder and ensure uniform temperature all the way through the end of the extrusion. As the screw can’t pull molten plastic, an anti-oozing mechanism ensures nice looking prints without any flaws.
Precise Temperature Control
The three PT100 sensors are class A, high precision sensors. The circuit has been designed to use the best resolution between 0°C and 500°C. High flow means high energy. The 1100 Watts heating system ensures stable temperature in high-speed 3D printing conditions.
